5g 向け MIMO およびアレイ設計
Antenna engineers favor advanced antenna systems capable of beam steering and multiple data stream transmission in order to meet 5G throughput requirements. Designing such a device is a difficult task because many factors are involved in a device’s performance:
Antenna coupling within a device’s case
Effects of multipath propagation
Data transfer schemes
XFdtd そして ワイヤレス InSite ensure a comprehensive device design process, from simulating the initial antenna pattern to computing throughput performance in a multipath channel model. Together the products ensure a device will work well in its intended environment.
Stand-alone Device Performance
Remcom’s time-domain electromagnetic simulation software, XFdtd, enables in-depth analysis of a device’s stand-alone performance. Detailed CAD models of the antennas, PCB, and device assembly are imported from Pro Engineer, Allegro, and other software packages. The following results are available from a single finite-difference time-domain (FDTD) simulation:
Envelope cross correlation
An RF engineer needs to go beyond stand-alone antenna performance in order to ensure sufficient 5G device performance. Results from an XFdtd simulation that characterize the performance of an antenna are easily exported to Wireless InSite where the device is analyzed in its intended environment.
3D Channel Model

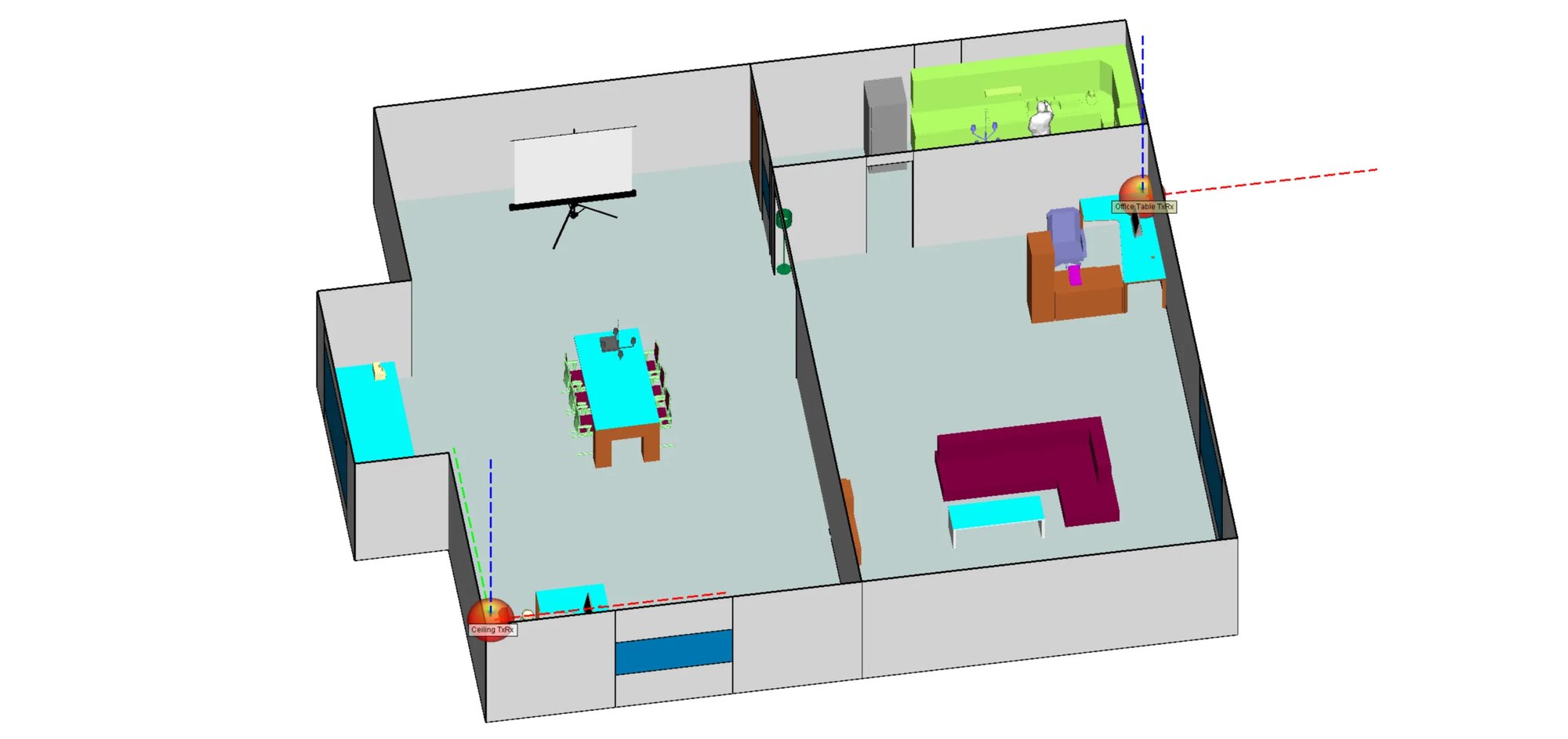

3D propagation scenarios can be modeled in Remcom’s wireless prediction software, Wireless InSite. Site-specific and generic test environments are created by importing terrain, defining building floor plans, specifying base station or access point locations, and providing material information. Antenna designs from XFdtd are then tested in applications including:
City blocks for small cell base station deployment
Outdoor-to-indoor for fixed wireless access scenarios
Office buildings for WiFi access planning
Wireless InSite uses high-fidelity ray-tracing models to determine multipath propagation through the 3D environment. These industry leading capabilities include the ability to analyze:
3D terrain, buildings, and floor plans
Fine structural details including curbs, window frames, chairs, and desks
Diffuse scattering at millimeter waves
Attenuation from trees, shrubs, and other foliage
Transmitters and receivers are comprised of one or more antenna elements. Wireless InSite computes the link between each antenna element on the transmitter and receiver and reports results including:
Complex impulse response at each receiver
Power delay profiles
H-matrices connecting each antenna element on a base station or access point to those on a UE or device
Once the 3D propagation scenario has been characterized, communication systems can be overlayed to determine throughput and capacity metrics.
Communication System Metrics
Given the antenna design and 3D channel model, Wireless InSite’s Communication Systems Analyzer allows the RF engineer to evaluate a 5G device’s operation in the intended scenario.
To start, a MIMO technique is applied to each transmitter and receiver. This will improve a system’s performance by increasing the signal-to-interference-plus-noise ratio (SINR), providing multiple parallel data streams, or both. Wireless InSite models the following MIMO techniques:

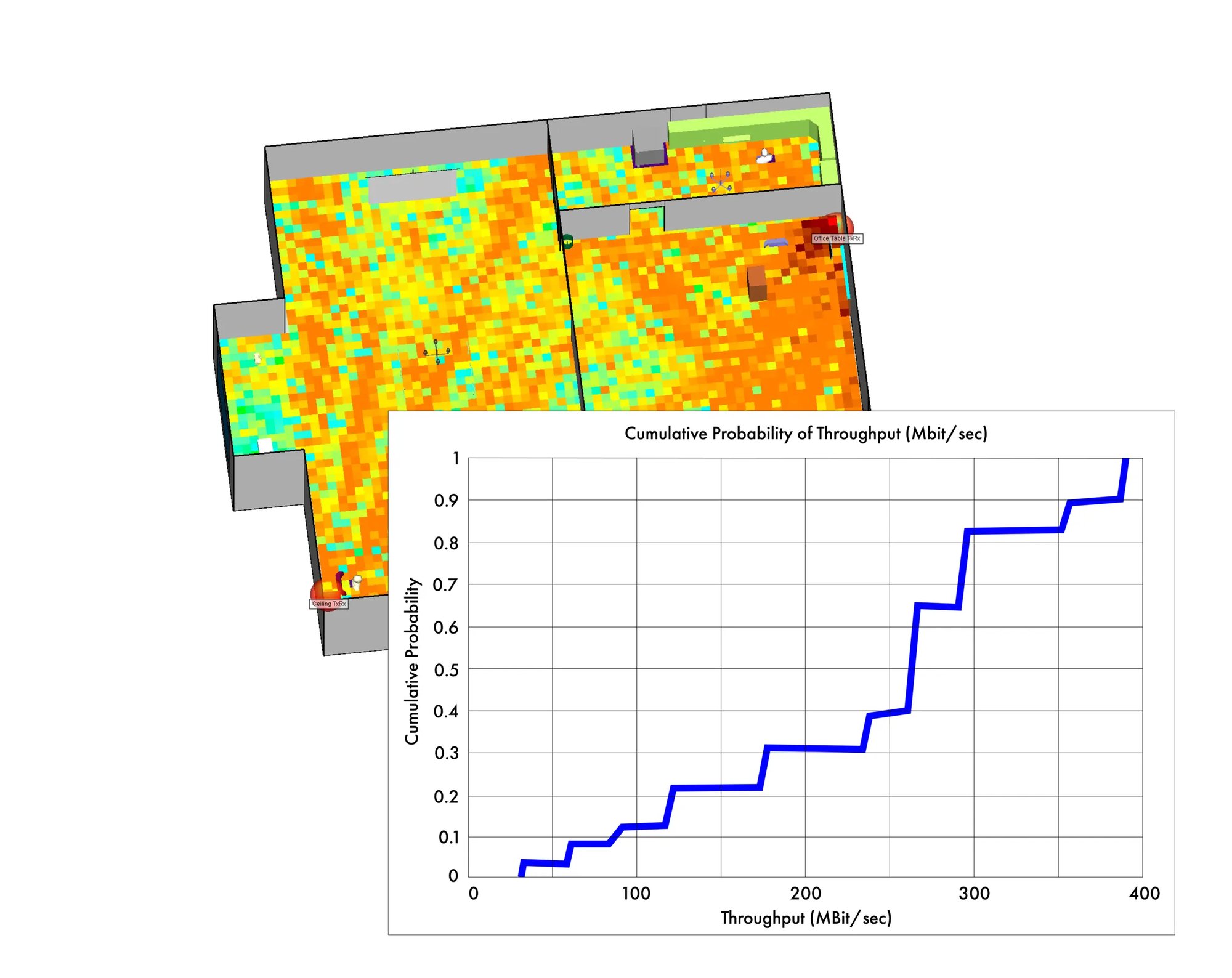

MIMO techniques determine how data is transmitted through the 3D environment. Once that is known, Wireless InSite determines how much data can be transmitted. The following metrics are accessed for each data stream and point-to-point link:
Throughput and capacity
Bit error rate (BER)
Noise, interference, and SINR
This results in a powerful tool that engineers use to determine if their device will meet 5G performance requirements in a realistic operating environment.
